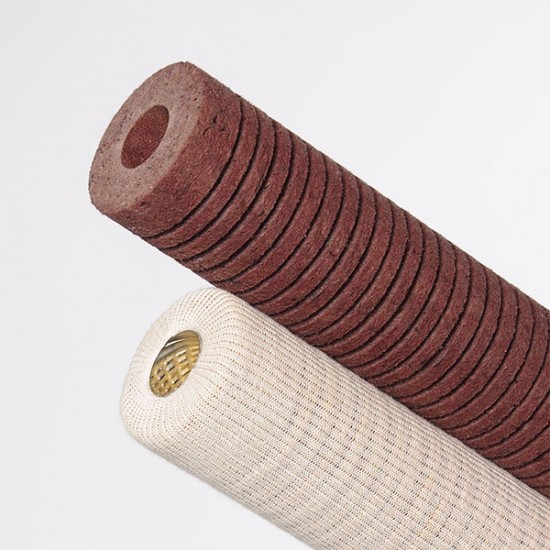

Resin Bonded Depth

A rigid fixed-matrix structure with true gradient porosity. The grooved outer surface greatly expands the filter’s effective surface area and further increases the contaminant holding capacity. The synthetic fiber/phenolic resin binder offers proven performance operating under challenging conditions of high temperatures, high fluid viscosities, and high differential pressures.

Category: Product ID: 2184

Description

Big Yellow

Option 1:
  • Outer wrap collects large particles and agglomerates, while inner media control particle removal at the rated micron retention
  • Outer wrap eliminates loose debris and contamination caused by machined products
  • One-piece construction eliminates bypass concerns with multi-length cartridges and eases change out
  • Silicone-free construction ensures no contamination to adversely affect adhesion properties of coatings
  • Micron ratings from 1 to 150
  • Many lengths available ranging from 4″ to 40″
Applications:
  • Inks
  • Paints
  • Coatings
  • Adhesives
  • Oils
  • Sealants
  • Resins
  • Petroleum
  • Pesticides
  • Salt Water
  • Varnishes

RED BOND

Option 2:
  • Designed for use in highly viscous fluids
  • High dirt-holding capacity and almost zero media migration
  • Micron ratings from 1 to 150
  • Many lengths available ranging from 4″ to 40″
Applications:
  • Inks
  • Paints
  • Coatings
  • Adhesives
  • Oils
  • Sealants
  • Resins
  • Petroleum
  • Pesticides
  • Salt Water
  • Varnishes
