Box Filters

Rigid Cells are an extended surface, medium to high efficiency filter suitable for most commercial and industrial HVAC systems. Product is available in fiberglass or synthetic media and can be used as a pre-filter or final filter.

Ashrae Cells are an extended surface, high efficiency filter appropriate for wide range of applications.

Category: Product ID: 2317

Description

Fiberglass Rigid Cell is an extended surface, medium to high efficiency filter. The high lofted ultrafine fiberglass media provides excellent dust holding capacity and coupled with its rigid construction virtually eliminates dust particle unloading downstream of the filter.

Synthetic Rigid Cell is an extended surface, medium to high efficiency filter. The high lofted ultrafine synthetic media provides excellent dust holding capacity and coupled with its rigid construction virtually eliminates dust particle unloading downstream of the filter.

Options:

  • Available in a MERV 10, 11, 13 and 15
  • Box-style and single header available
  • 6” or 12” depths
  • Galvanized steel frame
  • Can be used as a pre-filter or final filter depending on application
  • Robust filter withstands unfavorable conditions especially variable air volume (VAV)

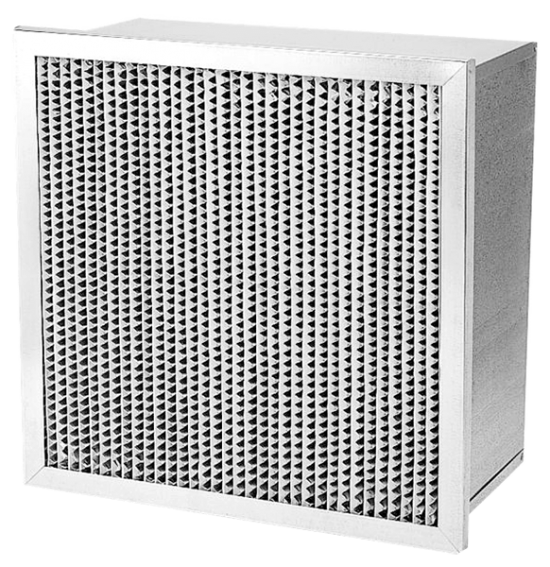

Ashrae Cell is an extended surface high efficiency filter constructed in a rigid frame. This filter utilizes a continuous sheet of wet laid microfiber media that is deep pleated with hemmed edge aluminum corrugated separators between each pleat. The high dust holding capacity of the filter makes it an excellent choice for a wide range of applications.



  • Available in MERV 10, 11, 13, 14 and 15 in both 6” and 12” depths
  • Moisture resistance media for high humidity applications
  • Designed for use in variable air volume (VAV) systems
  • Rigid design prevents unloading of dust due to media oscillation
  • Galvanized steel frame
