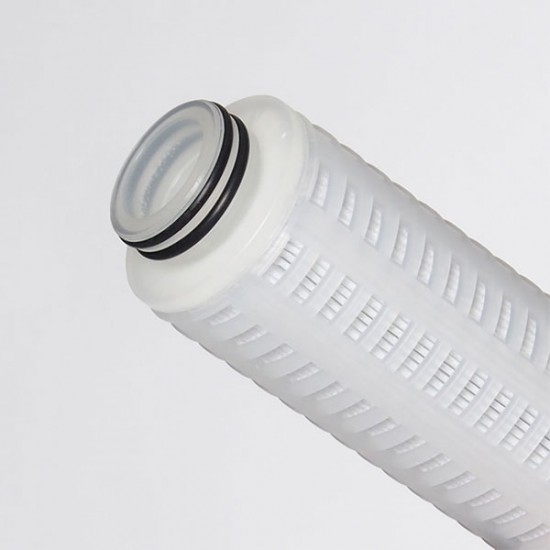

Pleated Polypropylene Cartridge

High purity pleated polypropylene filter media provides a high area, 100% polypropylene element for removal of fine or coarse particulate from fluid streams. The pleated depth media is encapsulated in an integral, continuous length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical inertness. Offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in all end configurations. Commonly used in food/beverage and chemical applications as a final filter or pre-filtration stage.

Category: Product ID: 2191

Description

Economy and High Purity Grades

Offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention) grades in common adapter configurations.

Retention Rates

0.2µ, 0.45µ, 1µ, 2µ, 5µ, 10µ, 20µ, 40µ

Dimensions

Length: 10 to 40 inches
Outside Diameter: 2.50 and 2.70 inches

Applications:
  • Food & Beverage
  • Photographic
  • Deionized Water
  • O. Pre-Filtration
  • Process Water
  • Fine Chemicals
  • Process
  • Plating Chemicals
  • Wastewater
  • Produced Water
  • Cosmetics
