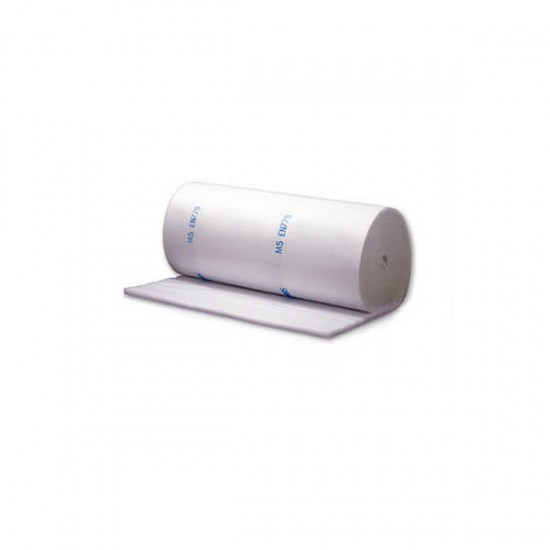

Diffusion Media

Ceiling diffusion systems decrease rework by eliminating the micron-size particles from the supply air that cause dirt-related rejects. The level of filtration is dependent upon the quality of the paint finish required.

Category: Product ID: 2462


FR-1 panels and links are designed for premium cross-draft and select downdraft intake filtration in paint spray booths in the automotive refinishing and industrial finishing markets. 1″ panel with a 95% efficiency on particle sizes greater than 10 microns. Two layers, 100% polyester, 3-ply media with impregnated tackifier. Heat sealed to 9 gauge internal support frame. Rated UL 900, Class 1.

560GX panels are designed to provide premium diffusion intake air filtration in paint spray booths used by the automotive refinishing and industrial finishing markets. It is designed with synthetic non-woven fibers, thermally bonded and progressively structured, with 100% tackifier for maximum protection. A supporting downstream polyester scrim increases stability and reduces particle migration. Greater than 99% efficiency on particle sizes 7-10 microns – Filter Class EN 799 F5. Ra ted UL 900, Class 1.
